Flexible Power Supply Shielding PVC Jacket Copper Cables
Product Specifications
| Attribute |
Value |
| Sheath Material |
PVC |
| Insulation Material |
PVC |
| Material Shape |
Round Wire |
| Range of Application |
Industrial Control |
| Brand |
Hwatek |
| Color |
Optional |
| Qty/Roll |
305m,610m or as Request |
| Transport Package |
Rolled in Reels, Packed in Pallets. |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
Product Description
These flexible power supply cables are designed for use in engineering machinery, machine processing equipment, logistics delivery systems, lifting applications, and other industrial control environments.
Key Features
- Super flexible design for easy installation
- UV resistant for outdoor applications
- Anti-rat and termite protection
- Passes UL VW-1 and CSA FT1 vertical flame tests

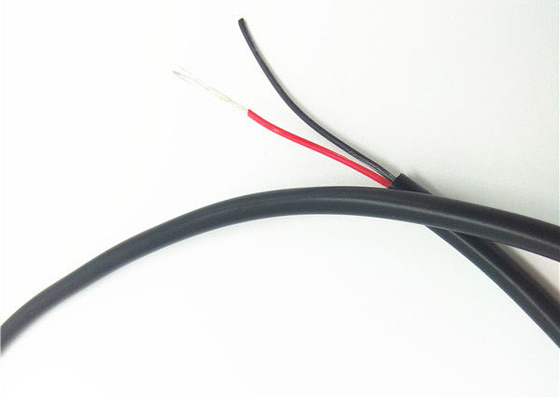

Construction
- Stranded bare copper conductor (26-4/0AWG)
- PVC insulation
- Tinned or bare copper braiding shield (optional)
- Braiding coverage options: 70%, 80%, 85%, 90%, 95%
- PVC jacket
Technical Parameters
- Rated temperature: -40~105ºC
- Rated Voltage: 600/1000V
Product Specifications
| Product Number |
Cores |
Area mm² |
Conductor |
NO./mm |
Conductor Dia mm |
Nom. Thickness mm |
Nom. Dia. mm |
Max. Cond. Resistance (200C) Ω/km |
| HTD***023 |
2~7 |
4 |
81/0.25 |
2.59 |
1.51 |
5.60 |
18.30 |
4.95 |
| HTD***024 |
2~7 |
6 |
7/18/0.25 |
3.54 |
1.53 |
6.60 |
20.80 |
3.30 |
| HTD***025 |
2~7 |
10 |
7/30/0.25 |
4.58 |
1.61 |
7.80 |
23.80 |
1.91 |
| HTD***026 |
2~7 |
16 |
7/47/0.25 |
5.74 |
1.63 |
9.00 |
26.80 |
1.21 |
| HTD***027 |
2~5 |
25 |
7/73/0.25 |
7.17 |
1.67 |
10.50 |
30.80 |
0.780 |
| HTD***028 |
2~5 |
35 |
19/37/0.25 |
8.49 |
2.01 |
12.50 |
35.80 |
0.554 |
| HTD***029 |
2~40 |
50 |
19/54/0.25 |
10.26 |
2.52 |
15.30 |
42.80 |
0.386 |
