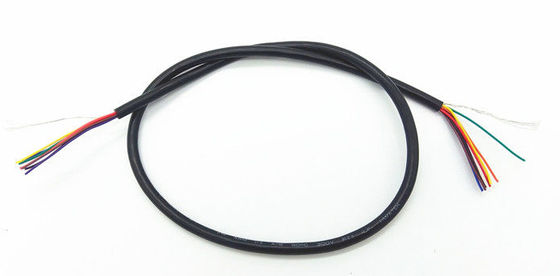

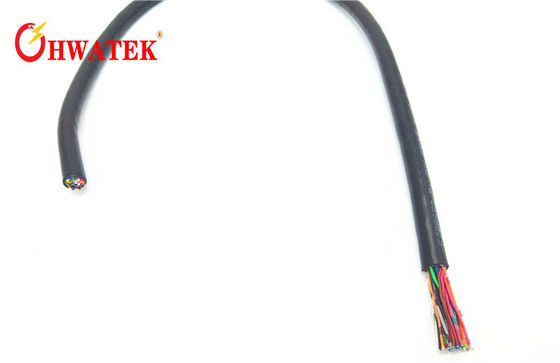

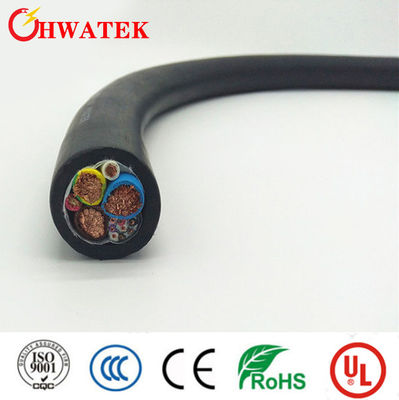

450/750V AC & DC Multicore HV EV Power Charger Cable Wire
Certification
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
Structure Diagram
Reference Standard
GB/T 33594-2017
Product Category
AC: EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction
- Rated temperature: -40 ~ +90°C
- Rated voltage: AC450/750V
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE
- Sheath material: TPU
- Flexible construction, resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
- IEC60332-1 flammability test
- Minimum bending radius 5xOD
- Easy installation
Product is applicable for all kinds of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category |
Wire Specifications |
Reference Current (A) |
Diameter Unshielded (mm) |
| EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
3×2.5+2×0.75 |
18 |
12.7 | 11.1 |
| 3×4+2×0.75 |
25 |
14.4 | 12.8 |
| 3×6+2×0.75 |
34 |
16.3 | 14.5 |
| 5×2.5+2×0.75 |
18 |
15.3 | 13.7 |
| 5×4+2×0.75 |
25 |
17.8 | 16.0 |
| 5×6+2×0.75 |
34 |
19.8 | 17.8 |
| 5×10+2×0.75 |
50 |
22.9 | 20.7 |
| 5×16+2×0.75 |
67 |
27.5 | 25.1 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
Company Profile

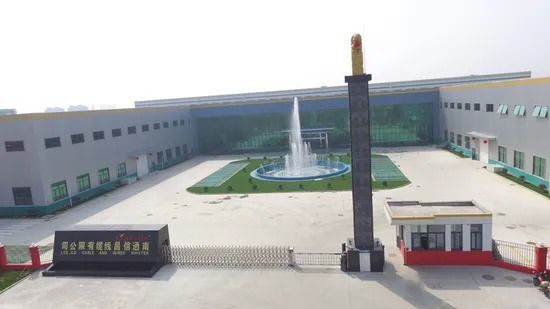

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
