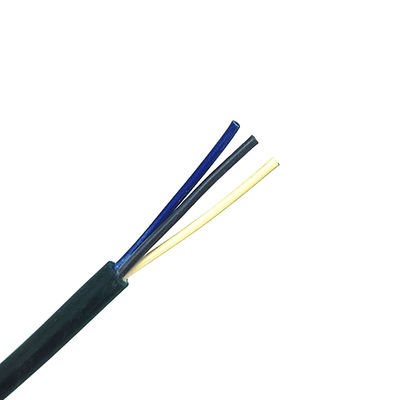

UL2587 TYPE PVC insulation Tinned Copper Stranded PVC Sheath 2P×20AWG 90℃ 600V high Voltage cable

Basic Properties
Place of Origin: PORCELANA
Brand Name: HWATEK
Certification: ISO9001, RoHS
Model Number: UL2587
Trading Properties
Minimum Order Quantity: 1000
Price: negotiable
Standard Packaging: Carretes o rollos
Delivery Time: 4 semanas
Payment Terms: T/T
Product Summary
UL2587 TYPE PVC insulation Tinned Copper Stranded PVC Sheath 2P×20AWG 90℃ 600V high Voltage cable Product Specifications Construction Conductor Tinned copper standard Cross section 2P×20AWG Construction 65/0.10mm Strand Dia.(Ref.) 0.93mm Insulation PVC Nom.Thickness 0.23mm Min.Thickness 0.18mm ...

Product Details

Resaltar:

Copper Conductor EV Charging Cable

,

TPE Sheath Electric Vehicle Charging Cable

,

Flame Retardant EV Power Cable

Rated Voltage: 600V
Rated Temperature: 90ºC
Conductor Material: De cobre estañada trenzada
Sheath Material: CLORURO DE POLIVINILO
Insulation Material: CLORURO DE POLIVINILO
Cable Assembly: 2p × 20awg
Tensile Strength: ≥10.3MPA
Elongation: el ≥100%
Aged Condition: 121 ± 1 ℃ × 168h
Jacket Thickness: 0.76 mm
Cable Diameter: 6.50 ± 0.30 mm
Spec: HT2502502
Product Description
UL2587 TYPE PVC insulation Tinned Copper Stranded PVC Sheath 2P×20AWG 90℃ 600V high Voltage cable Product Specifications Construction Conductor Tinned copper standard Cross section 2P×20AWG Construction 65/0.10mm Strand Dia.(Ref.) 0.93mm Insulation PVC Nom.Thickness 0.23mm Min.Thickness 0.18mm Insulation Dia. 1.40±0.08mm Insulation colour 1.black&red 2.white&green Twisted(Ref.) 2.80mm Filler Optional Material Al-mylar Assembly 2P×20AWG+A Jacket PVC Nom.Thickness 0.76mm Min
