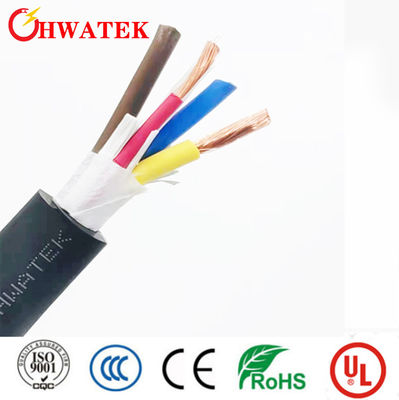

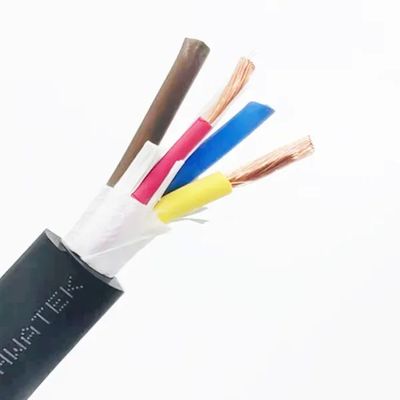

RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12

RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12

Ampliación de imagen :  RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12

Datos del producto:
Certificación: ISO9001, CE, CCC, RoHS
Pago y Envío Términos:
Cantidad de orden mínima: 3.000
Precio: 0.5
Contacto
Descripción detallada del producto
Voltaje nominal: Los demás Temperatura nominal: 75oC
Material conductor: De cobre desnudo trenzada Tamaño del conductor: 136/0.15 mm+10/1#Foil de cobre+1000d Vectran | 40/0.150+10/0.19 mm Foil de cobre+200d Vectran
Material de aislamiento: TPE Espesor de aislamiento: 0.80 mm | 0.50 mm
Mínimo de espesor de aislamiento: 0.62 mm | 0.35 mm Diámetro exterior: 3.70 ± 0.15 mm | 2.50 ± 0.15 mm
Material de la chaqueta: TPE Espesor de la chaqueta: 1.90 mm
Min Jacket Grosor: 1.51 mm Diámetro exterior del cable: 13.80 ± 0.30 mm
Resistencia máxima de DC: 7.98Ω/km | 26Ω/km Resistencia a la tracción: ≥10MPA
Alargamiento: ≥250%
Resaltar:

Flame Test GB/T 18380.12 EV Charging Cable

,

Outdoor AC EV Power Charger Cable

,

Bare Copper Stranded Electric Vehicle Charging Cable

RoHS 3 Compliant 450/750V EV Power Charger Outdoor AC Cable
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 0
Product Specifications
SPECIFICATION CABLE NAME EV CABLE
CABLE SPEC 3Cx2.5mm2+1Cx0.75mm2+W
RoHS Compliant Yes
Detailed Construction
ITEM A: 3C×2.5mm2 B: 1C×0.75mm2
CONDUCTOR Bare copper stranded
Size 136/0.15mm+10/1#copper foil+1000D Vectran 40/0.150+10/0.19mm copper foil+200D Vectran
O.D.(Ref) 2.10mm 1.30mm
INSULATION Material: TPE
Nom. thickness 0.80mm 0.50mm
Min.thickness at any point 0.62mm 0.35mm
O.D. 3.70±0.15mm 2.50±0.15mm
CABLING Filler: PP rope
Material: Nonwoven tape
Assembly: 3Cx2.5mm2+1Cx0.75mm2+W
JACKET Material: TPE
Nom. thickness: 1.90mm
Min.thickness at any point: 1.51mm
O.D.: 13.80±0.30mm
Performance Characteristics
ELECTRICAL CHARACTERISTICS PHYSICAL PROPERTIES
Rated voltage: 450/750V Tensile strength: ≥10MPa
Rated temperature: 75ºC Elongation: ≥250%
Max. DC conductor resistance(20ºC):
A: 7.98Ω/km B: 26Ω/km		 High temperature and pressure:(80±2ºC×4h) ≤50%
Voltage withstand test:
A: AC 3.5kV/15min
B: AC 1.5kV/15min		 Flame test: GB/T 18380.12
UV Resistance: 720h CQC1103-2015
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 1

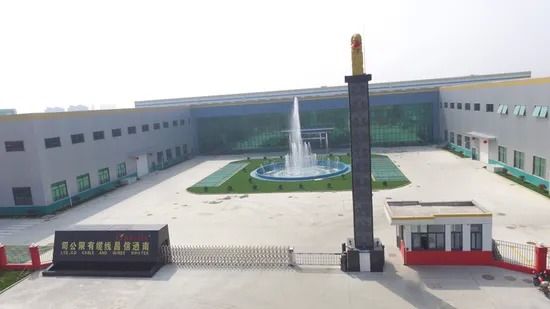

Company Profile
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 2
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Capabilities
  • Produce cables with following insulation & jacket: PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP etc.
  • Produce cables with temperature range from -40 to 200 degree temperature
  • Produce cables with voltage range from 30V to 1200V DC
  • Flamability rating: VW-1, FT1, FT2
  • 300+ different UL Style approval from UL Authority
  • QMS Certification: ISO9001-2015, IATF16949-2016, ISO13485-2016
  • Product Certification: CCC, UL, CSA, ETL, CE
  • Support drop-in equivalent to any brand of cables and custom made cables
Certifications
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 3
Production Process
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 4
Shipping & Logistics
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 5
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
Major Customers
RoHS 3 Compliant 450/750V Outdoor AC EV Charging Cable with Bare Copper Stranded Conductor and Flame Test GB/T 18380.12 6
