UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Todos los productos
Cable flexible industrial (240)
Cable flexible de la sola base (25)
Cable flexible multifilar (27)
gancho encima del alambre (54)
Cable de carga de EV (63)
Cables del aparato médico (21)
Mecanografíe el cable de TC-ER (10)
Alambre automotriz del cable (15)
Cable de transmisión espiral (14)
Cable de la transmisión de la señal (19)
cable de transmisión coaxial (12)
Cable de cadena de la fricción (13)
Cables de conexión del ordenador (11)
Solo cable del conductor (36)
cable multi del conductor (38)
Cable del motor servo (10)
Cable de la energía (16)
Cable plano eléctrico (10)
Los Mejores Productos
Base multi de carga ignífuga de la CA y de DC del cable de 450/750V EV

Base multi de carga ignífuga de la CA y de DC del cable de 450/750V EV

CA estañada/desnuda EV del cobre que carga resistente ULTRAVIOLETA de la envoltura del cable EV-RS90U TPU

CA estañada/desnuda EV del cobre que carga resistente ULTRAVIOLETA de la envoltura del cable EV-RS90U TPU

Cable de carga de EVJE EV para los vehículos eléctricos con trenzado conductor de cobre estañado/desnudo

Cable de carga de EVJE EV para los vehículos eléctricos con trenzado conductor de cobre estañado/desnudo

Certificación
Porcelana NANTONG HWATEK WIRES AND CABLE CO.,LTD. certificaciones
Porcelana NANTONG HWATEK WIRES AND CABLE CO.,LTD. certificaciones
gracias mucho por su respuesta rápida. Su solución profesional del cable me ayuda hacia fuera, calidad del cable es muy buena. Cabe nuestros conectores

—— Gonalze

Su calidad de los productos más allá de mi se imagina, aprecio altamente su gran ayuda, la esperanza tiene cooperación mejor y más profunda en futuro.

—— Bharath

Estoy en línea para chatear ahora

UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Ampliación de imagen :  UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles

Datos del producto:
Certificación: ISO9001, CCC, RoHS
Pago y Envío Términos:
Cantidad de orden mínima: 3.000
Precio: 0.5
Contacto
Descripción detallada del producto
Material conductor: Cobre Material de la vaina: CLORURO DE POLIVINILO
Material aislante: TPE Forma de material: Alambre redondo
Temperatura nominal: -40 ~ +105 ° C Tensión nominal: 300V (EVJE, EVJT), 600V (EVE, EVT)
Tipo de conductor: Cobre desnudo o estampado varados Especificaciones de alambre: 3 × 16AWG a 2 × 2AWG+4AWG+18AWG
Refiérase a actual: 12a a 100A Rango de diámetro: 8.2 mm a 30.1 mm
Resistencia fría: Sí Resistencia a la abrasión: Sí
Resistencia al aceite: Sí Resistencia al agua: Sí
Resistencia a los rayos ultravioleta: Sí
Resaltar:

UL Certified EV Charging Cable

,

300V/600V Rated Electric Vehicle Charging Cable

,

Cold Resistant EV Power Cable

UL Certified EVE EVT EVJE EVJT Electric Vehicle Charging Cable
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 0
Structure Diagram
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 1
Reference Standards
UL62 CSA C22.2 No.49
Product Categories
EVE / EVT
18AWG-500cmil, ≥2 Cores
EVJE / EVJT
18AWG-12AWG, 2-6 Cores
Construction Specifications
Rated Temperature
-40°C to +105°C
Rated Voltage
300V (EVJE, EVJT)
600V (EVE, EVT)
Conductor
Stranded bare or tinned copper
Insulation Material
TPE/PVC
Sheath Material
TPE/PVC
Performance Features
  • Cold resistance
  • Abrasion resistance
  • Oil resistance
  • Water resistance
  • UV resistance
  • Passes VW-1 flame test
  • Excellent resistance to flame propagation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
Category Wire Specifications Reference Current (A) Diameter (mm)
UL:EVE,EVT 600V3×16AWG1210.8
UL:EVE,EVT 600V3×14AWG1613.4
UL:EVE,EVT 600V3×12AWG2314.2
UL:EVE,EVT 600V3×10AWG3216.2
UL:EVE,EVT 600V3×16AWG+1×18AWG1211.4
UL:EVE,EVT 600V3×14AWG+1×18AWG1613.6
UL:EVE,EVT 600V3×12AWG+1×18AWG2314.3
UL:EVE,EVT 600V3×10AWG+1×18AWG3215.9
UL:EVE,EVT 600V3×8AWG+1×18AWG4621.8
UL:EVE,EVT 600V2×8AWG+10AWG+18AWG4620.9
UL:EVE,EVT 600V2×6AWG+8AWG+18AWG6323.1
UL:EVE,EVT 600V2×4AWG+6AWG+18AWG7526.5
UL:EVE,EVT 600V2×2AWG+4AWG+18AWG10030.1
UL:EVE,EVT 600V3×16AWG+2×18AWG1212.1
UL:EVE,EVT 600V3×14AWG+2×18AWG1613.9
UL:EVE,EVT 600V3×12AWG+2×18AWG2315.0
UL:EVE,EVT 600V3×10AWG+2×18AWG3216.6
UL:EVE,EVT 600V2×8AWG+10AWG+2×18AWG4621.9
UL:EVE,EVT 600V2×6AWG+8AWG+2×18AWG6324.8
UL:EVJE,EVJT 300V3×16AWG128.2
UL:EVJE,EVJT 300V3×14AWG169.0
UL:EVJE,EVJT 300V3×12AWG2310.1
UL:EVJE,EVJT 300V3×16AWG+1×18AWG128.8
UL:EVJE,EVJT 300V3×14AWG+1×18AWG169.5
UL:EVJE,EVJT 300V3×12AWG+1×18AWG2311.2
UL:EVJE,EVJT 300V3×16AWG+2×18AWG129.5
UL:EVJE,EVJT 300V3×14AWG+2×18AWG1612.1
UL:EVJE,EVJT 300V3×12AWG+2×18AWG2313.2
1. Detailed dimensions are subject to product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. Sheath color is generally black or orange. Custom colors available upon request.
Company Profile
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 2
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Quality Certifications
We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certificates. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Management Philosophy
Operating with global customers through our well-established sales system based on the principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certificates & Quality Assurance
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 3 UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 4

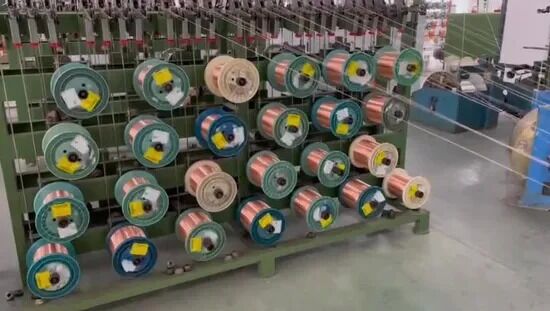

Production Process
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 5
Shipping & Logistics
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 6
Frequently Asked Questions
What products do you supply?
Consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certificates do you hold?
UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
What is your lead time?
Normally 2-3 weeks, 5-6 weeks during peak season.
How do you guarantee product quality?
Pre-production samples before mass production and final inspection before shipment.
Major Customers
UL Certified EV Charging Cable with 300V/600V Rated Voltage and Cold Resistant TPE Sheath for Electric Vehicles 7
